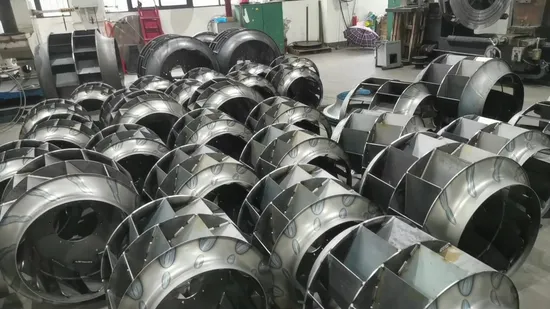

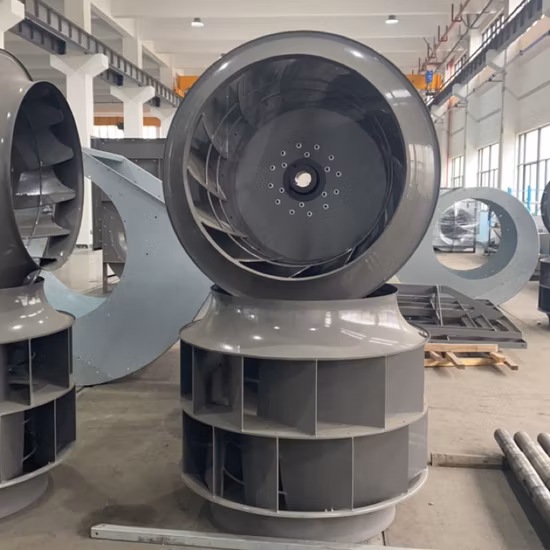

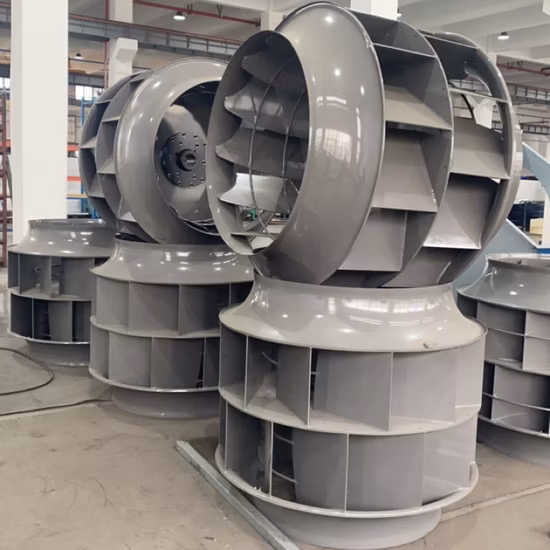

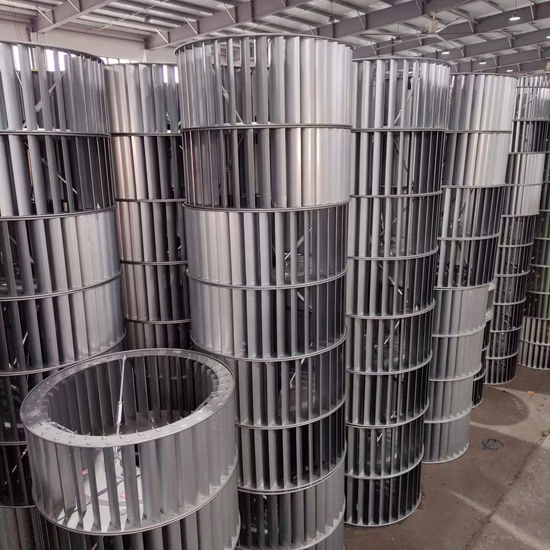

250mm AC 115V 230V Ventilation Centrifugal Duct Fan Forward Curved Centrifugal Fan Impeller

Basic Info.

Motor Type	External Rotor Motor
Impeller Material	Plastic +GF
IP Level	IP 44
Mounting	Other
Insulation	F
Amb,Temp	-25 to +60ºC
Blade Material	Aluminum Alloy
Frequency	50/60Hz
Voltage	115/120V 220/230V 380/400V
Warranty	1 Year
After-Sales Service Provided	Video Technical Support
Electric Current Type	Ec
Transport Package	Customized Packaging
Trademark	Customized logo
Origin	China
HS Code	8414593000
Production Capacity	50000PCS/Month

Product Description

Wheel Material	Metal
Motor Type	AC Centrifugal fans
Frequency	50/60Hz
Power Input	55W/85W/125W/170W
Air Flow Ranges	0-885 m³/h
Air Pressure	0-850 Pa
IP Level	IP 44
Speed Control	Control Input 0-10VDC / PWM
Life Expectance	50,000Hours(L10),At 40ºC room, humidity 15%~65%RH.
Electronic Protection	Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ; Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection
Ambient Temp Rangs	-25 ºC - +60 ºC

Model	Voltage	Frequency	Current	Power Input	Speed	Capacitor	Air flow	Noise
	V	Hz	A	W	rpm	uF	m³/h	dB(A)
CF2E108-72-LI	220/230	50	0.2	45	2200	1.5	186	53
		60	0.23	52	2320		198	54
CF2E120-60-00	220/230	50	0.25	50	2550	1.5	200/120	51
		60	0.3	63	2800		210/124	53
CF2E133-73-00	220/230	50	0.32	70	2300	2	290/170	61
		60	0.4	85	2350		270/160	63
CF2E140-60-00	220/230	50	0.42	100	1600	2	330/200	52
		60	0.47	110	1500		305/180	58
CF2E140-60-003	220/230	50	0.42	100	1600	2	330/194	52
			0.3	65	1200		240/141	40
			0.2	40	900		170/100	32
CF4E160-60-00	220/230	50	0.3	68	1400	2	400/230	58
CF2E160-60-00	220/230	50	1	230	1800	4	510/310	69
CF4E180-92-00	220/230	50	0.52	85	1450	3	750/441	690
CF4E200-52-00	220/230	50	0.55	120	1300	3	540/315	58
CF4E200-102-00	220/230	50	0.95	200	1300	6	1000/588	66
CF4D200-102-00	220/230	50	0.6	200	1300	/	1000/588	66
CF4E225-92-00	220/230	50	1.8	400	1340	10	1400/823	73
CF4D225-92-00	380/400	50	0.9	400	1340	/	1400/823	73
CF4E250-102-00	220/230	50	3	630	1300	12	2400/1411	74
CF4D250-102-00	380/400	50	1.2	630	1300	/	2400/1411	74
CF6E250-102-00	220/230	50	1.6	340	900	8	1650/970	67
CF6D250-102-00	380/400	50	0.73	340	900	/	1650/970	67
CF4D250-102-001	380/400	50	1.6	850	1350	/	3300/1941	74
CF4D280-144-00	380/400	50	2.5	1400	1400	/	4100/2411	82
CF6E280-144-00	380/400	50	2.4	550	750	8	2400/411	66
CF6D280-144-00	380/400	50	1.8	550	750	/	2400/411	66
